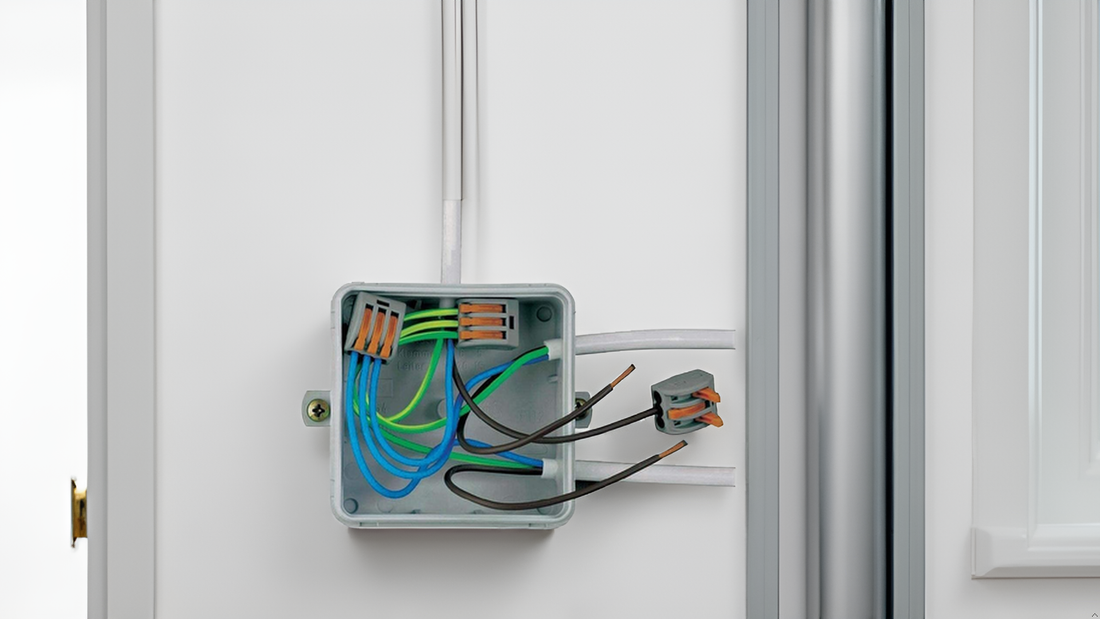

How to Choose the Right Wire Gauge (AWG) for Lever Connectors

How to Choose the Right Wire Gauge (AWG) for Lever Connectors

Why Wire Gauge Matters

Choosing the wrong wire gauge for your lever connectors can lead to overheating, connection failure, or even fire hazards. AWG (American Wire Gauge) is the standard used in the US — and the lower the number, the thicker the wire.

Understanding AWG Basics

Here's a quick reference for common AWG sizes and their typical current ratings:

  • 28 AWG – Up to 0.5A (signal/low-power applications)
  • 24 AWG – Up to 2A (low-voltage lighting, sensors)
  • 20 AWG – Up to 5A (small appliances, LED strips)
  • 18 AWG – Up to 10A (automotive, power distribution)
  • 16 AWG – Up to 13A (extension cords, pumps)
  • 14 AWG – Up to 15A (household circuits)
  • 12 AWG – Up to 20A (kitchen appliances, high-power circuits)

How to Match Wire Gauge to Your Lever Connector

Every lever connector has a rated wire range printed on the housing — for example, 28–12 AWG. Before connecting, confirm:

  1. Check the connector's wire range. Use a wire that falls within the min/max AWG spec on the connector label.
  2. Calculate your load current. Add up the amperage drawn by all devices on the circuit. Apply a 20% safety margin — if your load is 10A, size for 12A minimum.
  3. Match ampacity to AWG. Use the reference table above or consult the NEC (National Electrical Code) ampacity tables for your wire type and installation environment.
  4. Consider wire type. Solid wire is easier to insert into lever connectors and holds shape well; stranded wire is more flexible but may need a ferrule for a clean, secure fit.
  5. Check voltage rating. Most lever connectors are rated for up to 600V — verify your application voltage doesn't exceed this.

Solid vs. Stranded Wire in Lever Connectors

Lever connectors work with both solid and stranded wire, but there are important differences:

  • Solid wire: Ideal for in-wall or fixed installations. Pushes in easily and stays put.
  • Stranded wire: Better for flexible or moving applications. Use ferrules (wire end sleeves) to prevent individual strands from fraying and causing a poor connection.

Common Mistakes to Avoid

  • ❌ Using wire outside the connector's stated AWG range
  • ❌ Undersizing wire for the actual load amperage
  • ❌ Inserting stranded wire without a ferrule
  • ❌ Mixing wire gauges in a single connector (check connector specs — some allow it, most don't)
  • ❌ Stripping too much insulation, leaving exposed copper outside the connector

Quick Selection Checklist

  1. ✅ Identify your circuit's maximum current (amps)
  2. ✅ Add 20% safety margin
  3. ✅ Select AWG from the ampacity chart above
  4. ✅ Confirm AWG falls within the connector's stated range
  5. ✅ Choose solid or stranded wire based on installation type
  6. ✅ Use ferrules with stranded wire
  7. ✅ Strip wire to the connector's recommended strip length (usually 10–11mm)
